Understanding Perforated Mesh in Industrial Applications

In diverse industrial sectors, the demand for materials offering optimal strength, ventilation, filtration, and aesthetic appeal is paramount. Among these, perforated mesh stands out as a versatile and high-performance solution. This engineered product, often referred to as perforated metal or perforated mesh screen, is characterized by its precise patterns of holes punched or stamped into various sheet materials. Its unique structure provides a superior combination of functionality and design flexibility, making it indispensable across a spectrum of critical applications from architectural facades to advanced filtration systems. This comprehensive overview delves into the technical aspects, industry trends, and practical applications that underscore the value of this material in modern engineering.

Process Flow: Manufacturing Precision Perforated Metal

The production of high-quality perforated mesh involves a meticulously controlled manufacturing process, ensuring precision, durability, and adherence to stringent industry standards. Unlike casting or forging, the primary method for creating perforated metal is punching or stamping. This process transforms raw material sheets or coils into products with specified hole patterns and open area percentages.

Detailed Manufacturing Steps:

1. Material Selection & Preparation: The process begins with selecting suitable materials, typically in sheet or coil form. Common materials include stainless steel (304, 316, 316L), carbon steel, galvanized steel, aluminum, copper, brass, and various alloys. Material thickness (gauge) and overall dimensions are critical parameters. For specialized applications, materials are chosen for their specific properties, such as enhanced corrosion resistance for petrochemical environments or high strength-to-weight ratio for aerospace components.
2. Tooling Design & Setup: Custom dies and punches are designed and fabricated based on the desired hole pattern (round, square, slotted, hexagonal, decorative), hole size, and pitch (center-to-center distance between holes). Advanced CNC machining ensures the precision of these tools, which directly impacts the accuracy and consistency of the final perforated mesh.
3. Perforation (Punching/Stamping): The prepared material is fed into high-speed presses. The punches, aligned with the die, rapidly pierce the material, creating the desired hole pattern. Modern machinery can handle continuous coils, allowing for efficient, large-volume production. Techniques include single-punch operations for intricate patterns or multi-tool setups for higher throughput.
4. Flattening & Leveling: The punching process can introduce slight distortions or camber in the material. To counteract this, the perforated sheets undergo a flattening and leveling process, often using roller levelers, to ensure the panels are perfectly flat and dimensionally stable.
5. Shearing & Slitting: After perforation and flattening, the material is sheared or slit to the customer's specified dimensions. This ensures that the final product, whether it's a small panel or a large screen, meets exact requirements.
6. Finishing & Surface Treatment: Depending on the application, the perforated metal may undergo additional finishing processes. These can include degreasing, deburring to remove sharp edges, anodizing for aluminum, powder coating for enhanced durability and color, or polishing for aesthetic appeal.
7. Quality Control & Testing: Throughout the process, rigorous quality control checks are performed. This includes visual inspection for defects, dimensional verification of hole size, pitch, and overall panel size, and material composition analysis. Products are tested against international standards such as ISO 9001 for quality management, ASTM standards for material specifications, and ANSI standards for specific applications. For example, testing for tensile strength, yield strength, and elongation according to ASTM E8 ensures the mechanical integrity of the material.

The average service life of perforated mesh can range from 10 to 50 years or more, heavily dependent on the material chosen, the environmental conditions, and the specific application. For instance, stainless steel 316L in a marine or chemical processing environment will far outlast untreated carbon steel.

Key Industry Trends and Technical Parameters

The market for perforated mesh is continuously evolving, driven by advancements in materials science, manufacturing technology, and increasing demands for sustainability and efficiency across various sectors.

Industry Trends:

• Increased Customization: Clients increasingly require tailor-made solutions for specific applications, driving demand for flexible manufacturing processes that can accommodate diverse hole patterns, material types, and finishing options.
• Sustainability & Lightweighting: A growing emphasis on reducing environmental impact and improving energy efficiency has led to increased use of lightweight materials like aluminum and more efficient designs that maximize strength while minimizing material usage.
• Advanced Material Integration: The integration of high-performance alloys and composites is expanding the applications of perforated mesh in extreme environments, such as high-temperature or corrosive chemical processing.

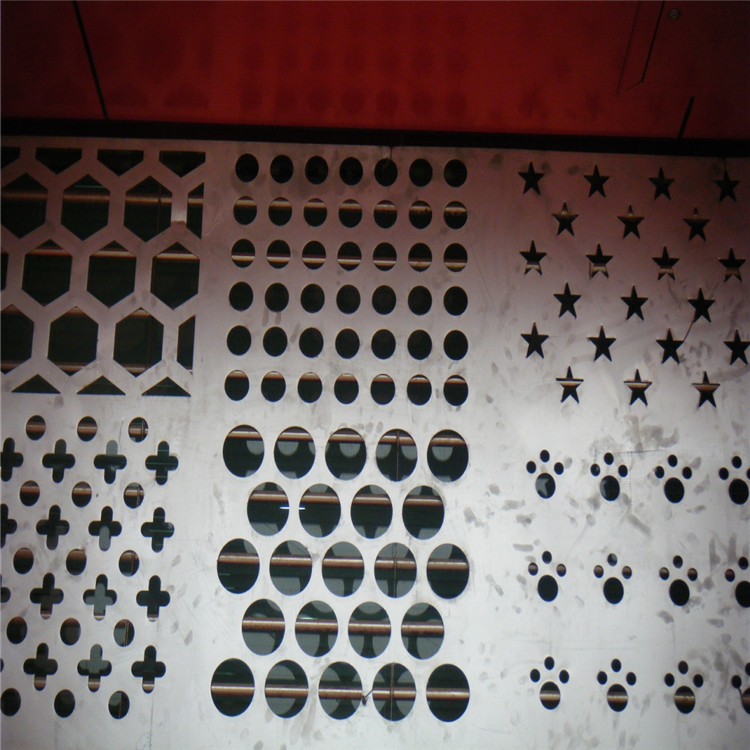

• Aesthetic and Architectural Applications: Beyond functional use, architects and designers are increasingly utilizing perforated metal for its aesthetic qualities, incorporating it into building facades, sunscreens, and interior design elements.

Typical Technical Specifications of Perforated Metal:

Understanding the critical parameters of perforated mesh is essential for selecting the right product for a given application. These specifications directly influence performance, durability, and cost.

Application Scenarios and Technical Advantages

The versatility of perforated metal enables its use across a vast array of industries, each benefiting from its unique combination of mechanical strength, flow characteristics, and aesthetic properties.

Target Industries:

• Petrochemical & Chemical Processing: Used for filtration, separation, catalyst supports, and protective screens in harsh chemical environments.
• Metallurgy & Mining: Employed in screening, sorting, and crushing equipment due to its wear resistance and high open area.
• Water Supply & Drainage: Critical for water intake screens, wastewater treatment filters, and dewatering applications.
• HVAC & Acoustics: Essential for air diffusers, sound attenuation panels, and protective grilles in heating, ventilation, and air conditioning systems.
• Architecture & Construction: Utilized for facades, sunshades, balustrades, ceilings, and infill panels for both functional and decorative purposes.
• Food & Beverage: Used in drying trays, sieves, and conveyor belts due to hygiene properties and ease of cleaning with appropriate materials like food-grade stainless steel.
• Automotive & Aerospace: Found in filters, grilles, and protective covers where lightweight and strength are critical.

Demonstrated Advantages in Typical Application Scenarios:

• Energy Saving (HVAC): In HVAC systems, accurately designed perforated mesh screen for air diffusers and grilles optimizes airflow distribution, reducing fan power consumption and improving energy efficiency by preventing back pressure and turbulence. An open area percentage designed for specific flow rates can result in a 5-10% reduction in energy costs compared to less optimized designs.
• Corrosion Resistance (Petrochemical): Stainless steel 316L perforated metal used in chemical processing filters offers superior resistance to corrosive acids and chlorides, significantly extending equipment lifespan and reducing maintenance downtime. This material choice can increase component life by 2-3 times compared to less resistant alloys in highly corrosive environments.
• Structural Integrity & Safety (Architectural): As architectural facades or balustrade infills, a strong perforated mesh provides essential safety barriers while allowing light and air penetration. Its inherent strength, especially with appropriate gauge and hole pattern, meets building codes for load bearing and impact resistance, ensuring public safety without compromising design.
• Acoustic Performance (Sound Attenuation): When combined with sound-absorbing materials, a perforated mesh screen acts as a protective and decorative facing for acoustic panels. The precise perforations allow sound waves to pass through to the absorbent material, effectively reducing reverberation and noise levels in industrial spaces, concert halls, or offices. A typical configuration can achieve Noise Reduction Coefficients (NRC) of 0.7-0.9.
• Filtration Efficiency (Water Treatment): In municipal water treatment plants, fine perforated metal sheets serve as primary screens to remove larger debris, protecting downstream filtration equipment. The consistent and precise hole sizes ensure effective particle separation, improving water quality and reducing maintenance frequency of other system components.

Vendor Comparison and Customized Solutions

Choosing the right supplier for perforated mesh is critical for project success, requiring a detailed evaluation of capabilities, quality, and support.

Key Factors in Vendor Comparison:

• Manufacturing Capabilities: Assess the range of materials, thicknesses, hole patterns, and finishing options offered. Look for advanced CNC punching, laser cutting capabilities, and the capacity for large-scale production.
• Quality Assurance & Certifications: Verify adherence to international standards (e.g., ISO 9001:2015 for quality management, ASTM for material specifications). Certifications indicate a commitment to consistent quality.
• Customization Expertise: A strong vendor offers comprehensive design support, engineering consultation, and prototyping services for unique requirements. This includes custom hole sizes, patterns, and complex fabrication.
• Lead Times & Logistics: Evaluate their ability to meet project deadlines and their logistical capabilities for timely delivery, especially for large or international orders.
• After-Sales Support & Warranty: Look for clear warranty policies, responsive customer service, and technical support.

Comparison: Standard Perforated Metal vs. High-Performance Perforated Metal

Customized Solutions:

Hebei Wire Mesh specializes in providing bespoke perforated mesh solutions tailored to the exact specifications of B2B clients. Our engineering team collaborates closely with clients from concept to delivery, ensuring optimal material selection, hole pattern design (e.g., variable open area, custom margins), and fabrication for unique applications. Whether it's a specific aesthetic requirement for an architectural project or precise filtration demands for a pharmaceutical plant, our capabilities allow for unparalleled customization. This includes custom forming, welding, and specific surface treatments like powder coating in RAL colors or specialized anodizing.

Application Case Studies and Customer Feedback

Our extensive experience serving diverse industries highlights the tangible benefits derived from expertly engineered perforated mesh.

Case Study 1: Noise Reduction in Industrial Manufacturing Facility

• Client: Large Automotive Parts Manufacturer
• Challenge: High noise levels from machinery exceeding OSHA limits, impacting worker safety and productivity. Traditional soundproofing was impractical due to ventilation requirements.
• Solution: We supplied custom perforated metal panels (aluminum, 1.5mm thick, 8mm round holes, 60% open area) to serve as facings for acoustic insulation boards around noisy machinery. The panels were designed to maximize sound absorption while maintaining adequate airflow for cooling.
• Results: Post-installation, noise levels were reduced by an average of 15 dB across the facility, bringing them within acceptable limits. The solution also provided a durable, easy-to-clean surface that protected the underlying insulation. Client feedback praised the aesthetic integration and significant improvement in the working environment.

Case Study 2: Precision Filtration for Pharmaceutical Production

• Client: Global Pharmaceutical Company
• Challenge: Needing extremely precise and hygienic filtration sieves for a new drug manufacturing process. Existing filters showed inconsistent pore sizes and were prone to corrosion from cleaning agents.
• Solution: We engineered custom perforated metal screen from medical-grade Stainless Steel 316L, with ultra-fine (0.5mm) staggered round holes and polished surface finish. Our advanced CNC punching ensured uniform hole size and distribution, and the material provided superior corrosion resistance.
• Results: The new filters significantly improved product purity and reduced batch rejection rates by 8%. The 316L material proved highly resistant to CIP (Clean-in-Place) chemicals, extending filter lifespan by 50% compared to previous solutions. The client lauded our precision and adherence to strict pharmaceutical standards.

Trustworthiness and Support

At Hebei Wire Mesh, we are committed to building lasting relationships with our B2B partners through transparency, reliability, and unparalleled customer service.

Frequently Asked Questions (FAQ):

Q: What is the minimum order quantity (MOQ) for custom perforated metal?

A: MOQ varies based on material, complexity, and tooling requirements. Please contact our sales team with your specific project details for a precise quotation.

Q: Can you provide samples of perforated mesh?

A: Yes, we can provide samples of standard patterns and materials. For custom patterns, samples may involve tooling costs.

Q: What file formats do you accept for custom designs?

A: We primarily accept CAD files (DWG, DXF), but can also work with PDF, AI, or detailed hand-drawn sketches for initial discussions.

Q: How do you ensure the quality of your perforated mesh products?

A: We implement a comprehensive ISO 9001 certified quality management system, including raw material inspection, in-process checks, and final product verification using precise measurement tools and visual inspections. Test reports and material certifications are available upon request.

Lead Time and Fulfillment:

Standard orders for common materials and patterns typically have a lead time of 2-4 weeks from order confirmation. Custom and complex projects may require 4-8 weeks, depending on tooling requirements and production queue. We maintain a robust supply chain and efficient production scheduling to meet demanding project timelines. Expedited options are available for urgent requirements, subject to capacity.

Warranty Commitments:

We stand behind the quality of our perforated metal products. All materials and workmanship are guaranteed for a period of one (1) year from the date of shipment against manufacturing defects, provided the products are used under normal operating conditions and in accordance with specified applications. This warranty excludes damage due to improper installation, misuse, or exposure to conditions beyond the material's intended resistance.

Customer Support Information:

Our dedicated team of technical sales representatives and engineers is available to assist you with every stage of your project, from initial inquiry and design consultation to after-sales support.

• Sales Inquiries: sales@hebei-wiremesh.com
• Technical Support: support@hebei-wiremesh.com
• Phone: +86-XXX-XXXX-XXXX (placeholder)
• Business Hours: Monday - Friday, 8:00 AM - 5:00 PM (GMT+8)

References

1. ISO 9001:2015 Quality management systems – Requirements. International Organization for Standardization.
2. ASTM International. Various standards related to metal properties and testing (e.g., ASTM E8/E8M for Tensile Testing of Metallic Materials).
3. Perforated Metals, Inc. (2023). Perforated Metal Technical Guide.
4. "Acoustic Properties of Perforated Panels: A Review," Journal of Sound and Vibration.
