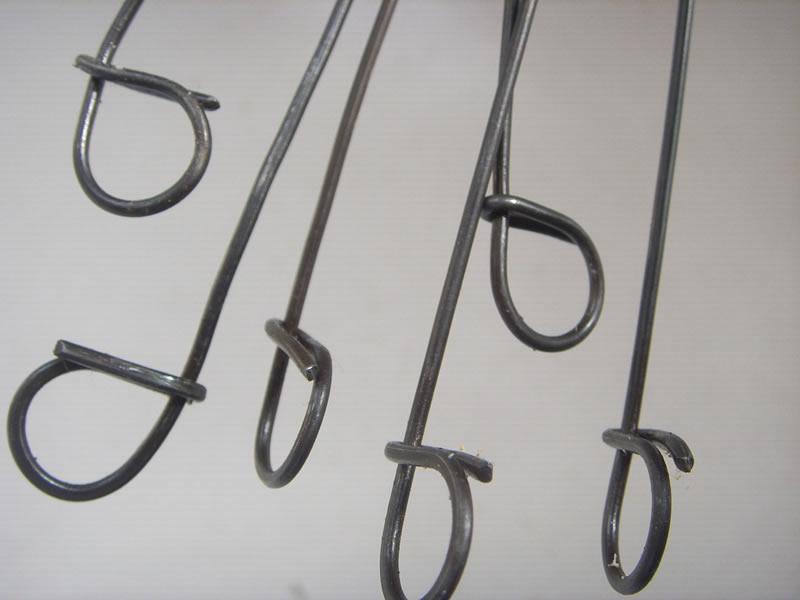

Loop Tie Wire: quick, tough, and surprisingly nuanced
A few months ago in Anping County, I watched a veteran line worker flick a simple
loop tie wire
through chain-link like a magician. To be honest, that five-second motion sums up why this product keeps winning on job sites: speed and reliability. Since then, I’ve been hearing the same thing from installers—pre-formed loops cut fatigue and keep crews moving.
What’s trending

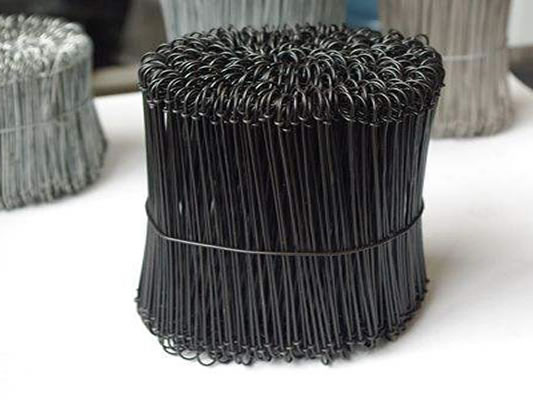

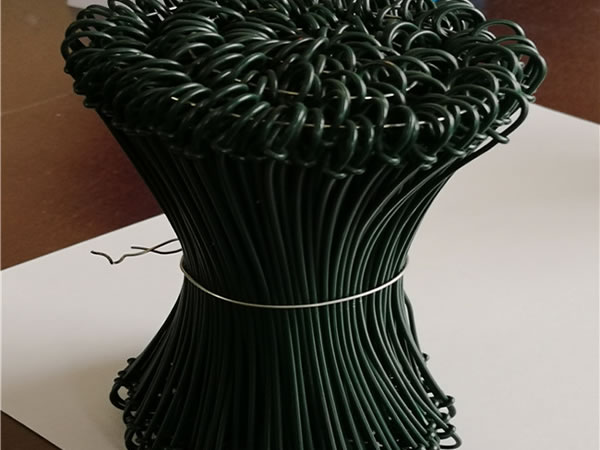

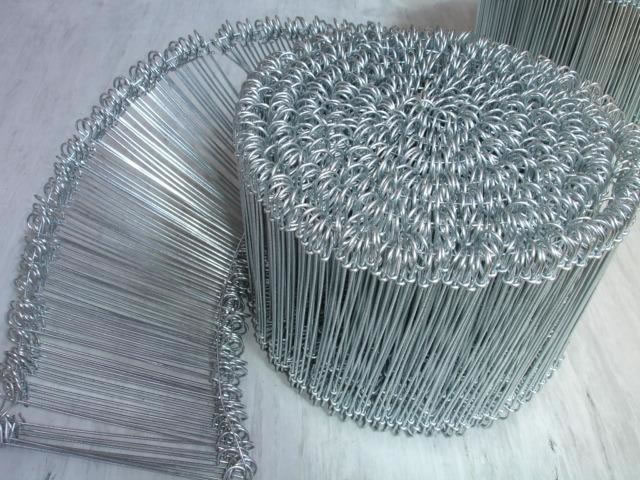

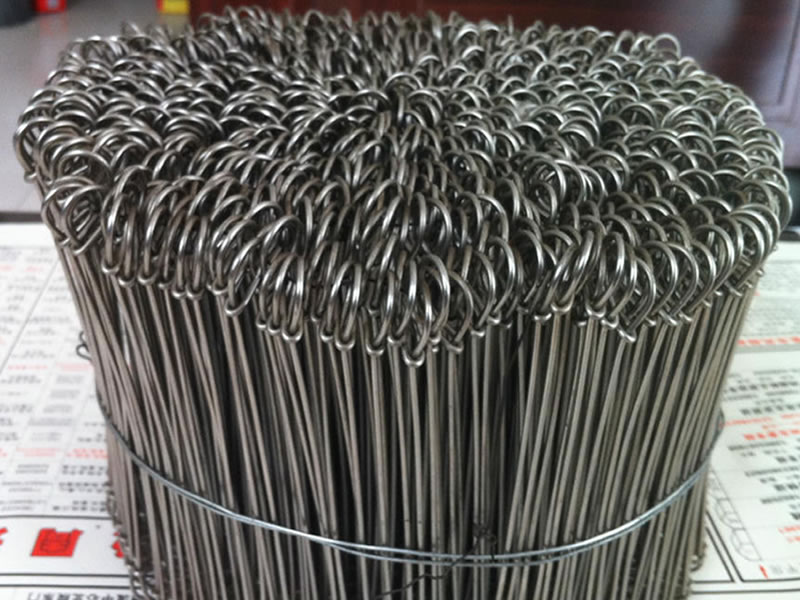

In fact, the market is shifting toward ready-to-use, pre-cut loop tie wire with better coatings. Hot-dip galvanizing for aggressive climates, black annealed for soft handling, and even PVC-dipped options for wet warehouses. Sustainability is creeping into specs too—more mills quoting RoHS and REACH compliance, and traceability back to Hebei heat numbers.
Core specs (real-world, not brochure-only)
| Parameter |
Typical value (≈; real-world may vary) |
| Material |
Low carbon steel wire (e.g., Q195); black annealed or galvanized |
| Wire dia. |
0.9–1.6 mm (19–14 ga) |
| Tensile strength |
350–550 MPa (annealed on the lower end) |
| Coating |
Electro-galv ≈ 8–15 g/m²; Hot-dip ≈ 40–100 g/m²; optional PVC |
| Length options |

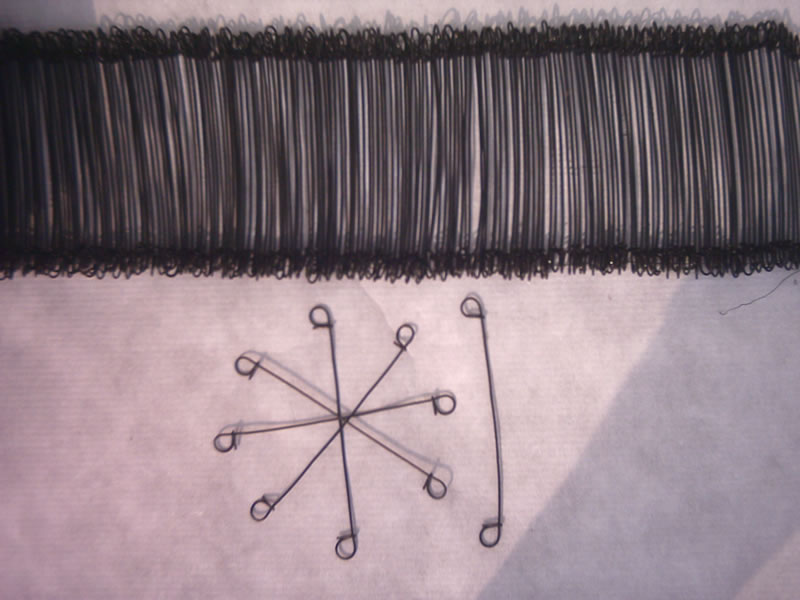

100–300 mm pre-cut; single or double loop |
| Features |
Easy installation, age resistance; smooth twist with standard tying tools |
Process flow and testing (how it’s really made)
Rod selection → multi-pass drawing → annealing (for ductility) → surface prep → galvanizing (if required) → loop forming and cut-to-length → 100% visual QC → packing (usually 1000 pcs/bundle). Honestly, the forming dies make or break consistency; a nick causes uneven twist and wasted time on site.
Testing and standards: zinc mass per ASTM A641/A641M, wire geometry to EN 10218, torsion per ASTM A938, tensile per ASTM A370, and salt-spray checks per ASTM B117 for coated variants. Typical salt-spray endurance: electro-galv ≈ 48–96 h; hot-dip ≈ 120–240 h. Service life (ballpark): indoor dry 8–15 yrs electro, 10–20 yrs hot-dip; coastal outdoor 2–5 yrs electro, 8–15 yrs hot-dip.
Applications and on-site feedback
- Warehouses: fastening chain-link and pallet fencing; many customers say pre-cut loop tie wire saves 20–30% time.
- Prisons: consistent loop tension for tamper resistance.
- Military fields: rugged perimeter mesh; hot-dip coating is common.
- Also: rebar tying, gabion lacing, agricultural trellising.
Vendor comparison (quick reality check)
| Vendor |
Strengths |
Coating quality |
Lead time |
Notes |
| Hebei Wire Mesh (Anping, NO.11 WEI’ER ROAD) |
Factory-direct, custom lengths/gauges, ISO 9001 |
Hot-dip and electro options; mill certs available |
≈ 7–15 days |
Stable batch-to-batch loops |
| Local distributor |
Immediate pickup, small MOQs |
Varies by brand |
Same day–3 days |
Limited gauges/lengths |
| Online marketplace vendor |
Low unit cost |
Inconsistent reporting |
≈ 10–30 days |
Check coating mass and torsion data |
Customization
You can spec loop tie wire by diameter (0.9–1.6 mm), length (100–300 mm), loop style (single/double), coating (black annealed, electro, hot-dip, PVC), and packaging (bundles or boxed). Typical MOQ: ≈ 5,000–10,000 pcs per size.
Two quick case notes
Logistics warehouse, North China: 5,000 pcs hot-dip loop tie wire for chain-link. Crew reported ≈18% faster install vs. cut wire; after 12 months, no red rust in random salt-spray spot checks.
Training perimeter, defense site: switched to 1.4 mm hot-dip from 1.2 mm electro; torsion failures dropped to near zero in winter work.
Final buying tips
- Ask for zinc mass data and torsion test results (sample 10 pcs/lot).
- Match coating to environment: hot-dip for coastal or high-humidity zones.
- Confirm loop forming tolerance—uneven loops waste time, not pennies.
Authoritative citations
- ASTM A641/A641M: Zinc-Coated (Galvanized) Carbon Steel Wire. https://www.astm.org/a0641_a0641m-19.html
- EN 10218-1: Steel wire and wire products — General. https://standards.iteh.ai/catalog/standards/cen/
- ASTM A938: Torsion Testing of Wire. https://www.astm.org/a0938-18.html
- ASTM B117: Standard Practice for Salt Spray Testing. https://www.astm.org/b0117-19.html
- ISO 9001:2015 Quality Management Systems. https://www.iso.org/standard/62085.html
