Welded Wire Mesh Machine raw material:
Galvanized iron wire, black iron wire, Stainless Steel wire
Welded wire mesh machine characters:
-- Automatically feeding wire more quickly back and forth, low noise, higher stability and saving electricity
-- This kind of machine is expert to produce mesh sheet. The finished mesh is much smoother than mechanical machines products.
-- PLC control. Easy to set and control. It makes this machine more intelligent and reasonable.
-- The weft wire supply is automatic.
-- The greatest advantage is possible to adjust the distance of wefts at random on the same mesh sheet
-- The finished produce welded wire mesh are for fence, construction, poultry cage etc
Welded wire mesh machine types:

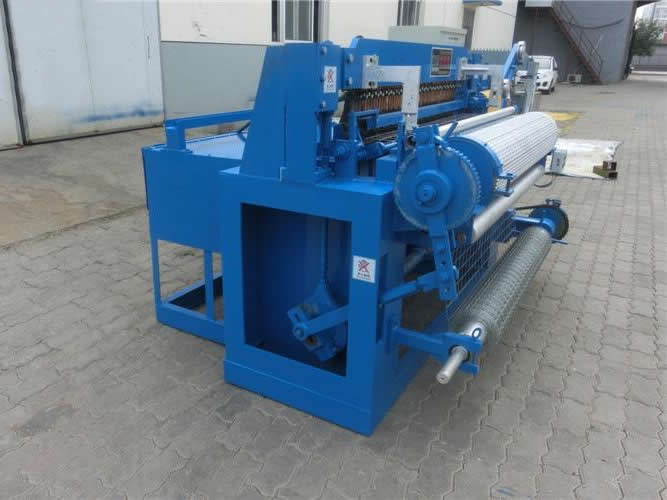

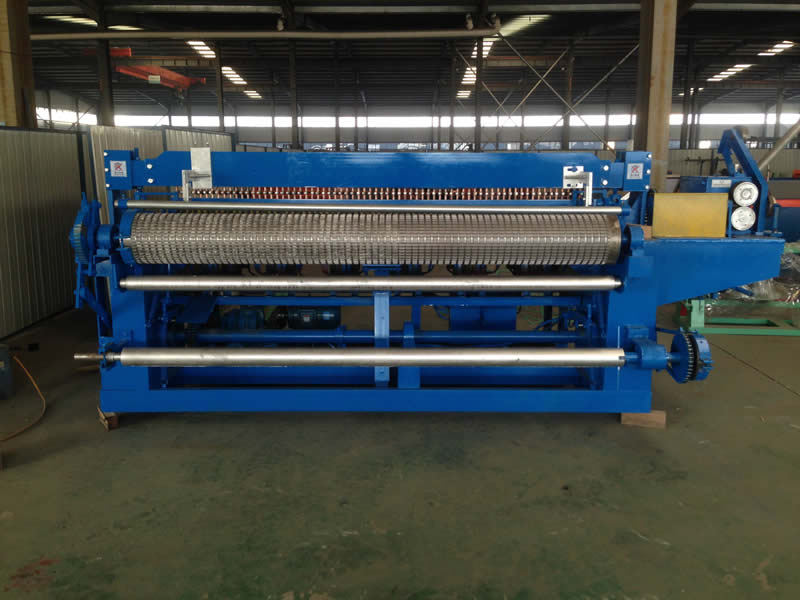

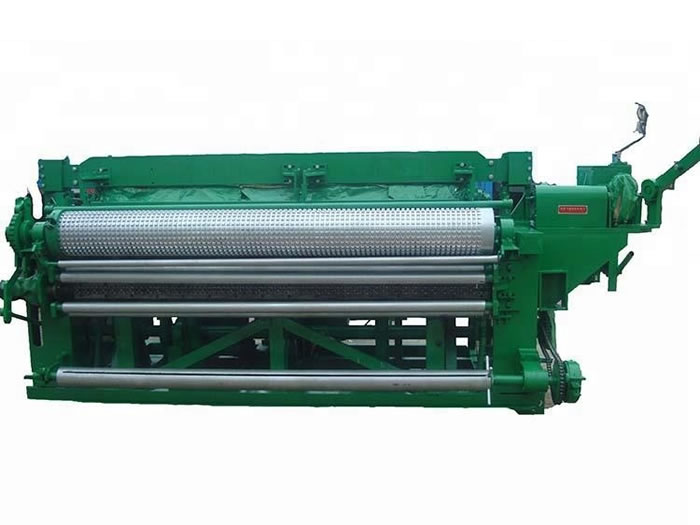

Welded Mesh roll machine: for making welded mesh rolls

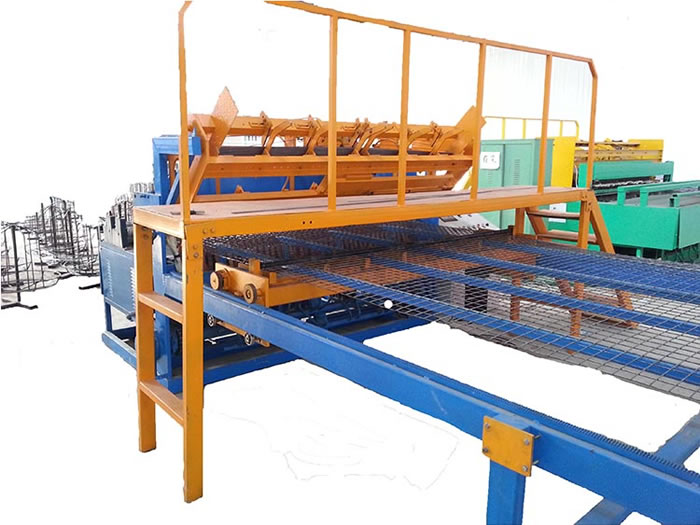

Welded Mesh Sheet or panel machine: for making welded mesh sheets or panels

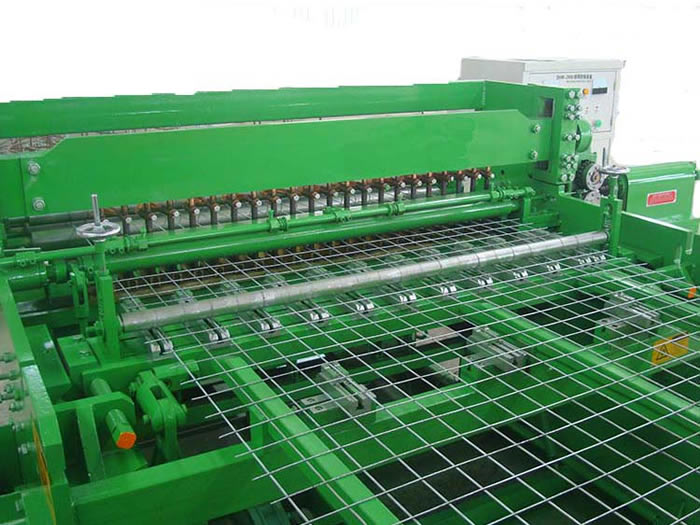

Wire Mesh Welding Panel Machine specifications:
YDP-01 Welded Mesh Panel Machine
| Types | YDP-01 |
| Diameter of wire(mm) | 2-4MM |
| Size of mesh (mm) | 1”-6” |
| Width (mm) | 1200mm-2000mm |
| Length(mm) | 2000mm-6000mm |
| Welding speed (mesh/minute) | 75 |
| Power | 4.0KW 380V/50HZ |
| Weight (kgs) | 3000 |
| Accessories | Main welding machine, electric cabinet, pay off stand, net welding mend machine |
YDP-02 Welded Mesh Panel Machine
| Types | YDP-02 |
| Diameter of wire(mm) | 3-7MM |
| Size of mesh (mm) | 50mm -200mm |
| Width (mm) | 1200mm-2400mm |
| Length(mm) | 2000mm-6000mm |
| Welding speed (mesh/minute) | 50 |
| Power | 4.7KW 380V/50HZ |
| Weight (kgs) | 4200 |
| Accessories | Main welding machine, electric cabinet, wire straighten and cutting machine |
YDP-03 Welded Mesh Panel Machine
| Types | YDP-03 |
| Diameter of wire(mm) | 5-8MM |
| Size of mesh (mm) | 50mm -200mm |
| Width (mm) | 1200mm-2400mm |
| Length(mm) | 2000mm-6000mm |
| Welding speed (mesh/minute) | 45 |
| Power | 5.7KW 380V/50HZ |
| Weight (kgs) | 4200 |
| Accessories | Main welding machine, electric cabinet, wire straighten and cutting machine |
YDP-04 Welded Mesh Panel Machine
| Types | YDP-04 |
| Diameter of wire(mm) | 8-12MM |
| Size of mesh (mm) | 100mm -200mm |
| Width (mm) | 1200mm-2400mm |
| Length(mm) | 2000mm-6000mm |
| Welding speed (mesh/minute) | 45 |
| Power | 5.7KW 380V/50HZ |
| Weight (kgs) | 4200 |
| Accessories | Main welding machine, electric cabinet, wire straighten and cutting machine,air compressor |
