Razor Barbed Wire

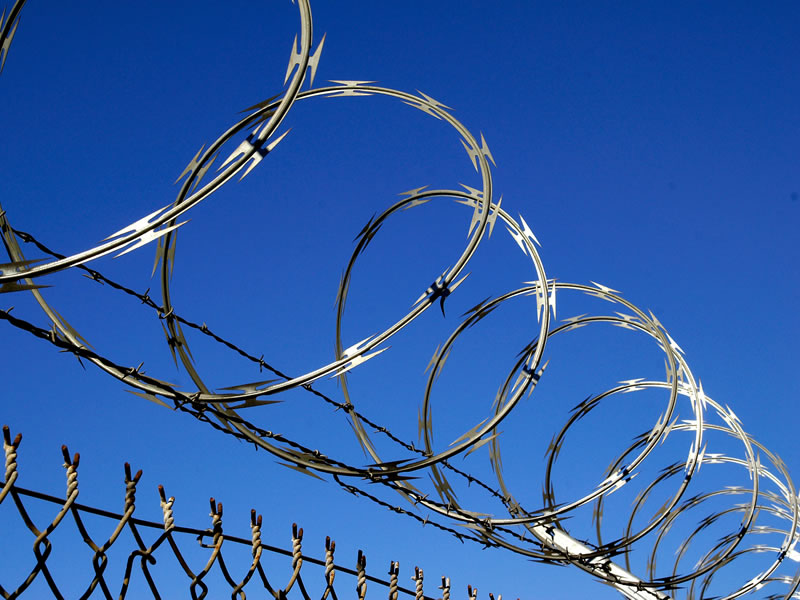

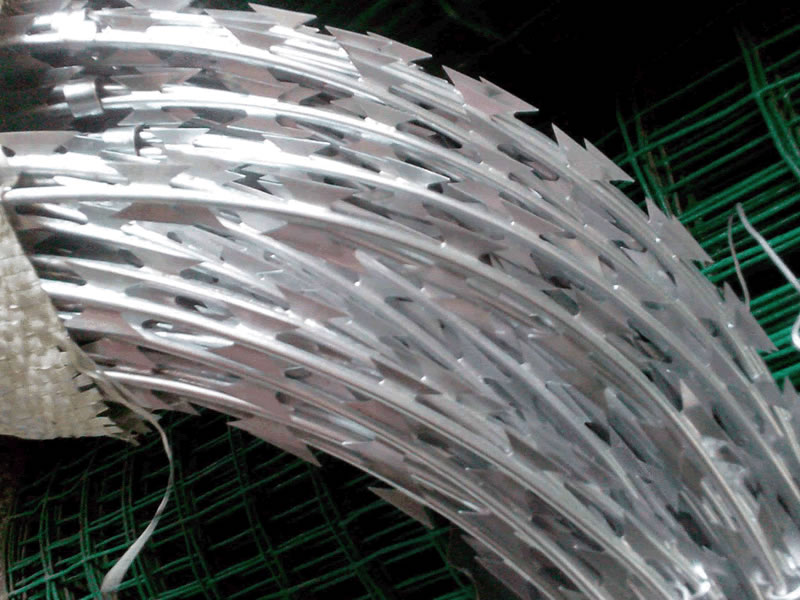

Razor wire is also named concertina coils or razor type barbed wire. It is a kind of modern security fencing materials with better protection and fencing strength made of hot-dipped galvanized steel sheets or stainless steel sheets. With beautiful and sharp blades and strong core wire, razor wire has the features of secure fencing, easy installation, age resistance and other properties.

Materials: steel wire,low carbon steel wire

Surface treatment: galvanized, hot-dipped galvanized and electro galvanized

Type: barbed wire strand

Razor type: Spiral razor cross-barbed mesh,Single-ring razor barbed mesh

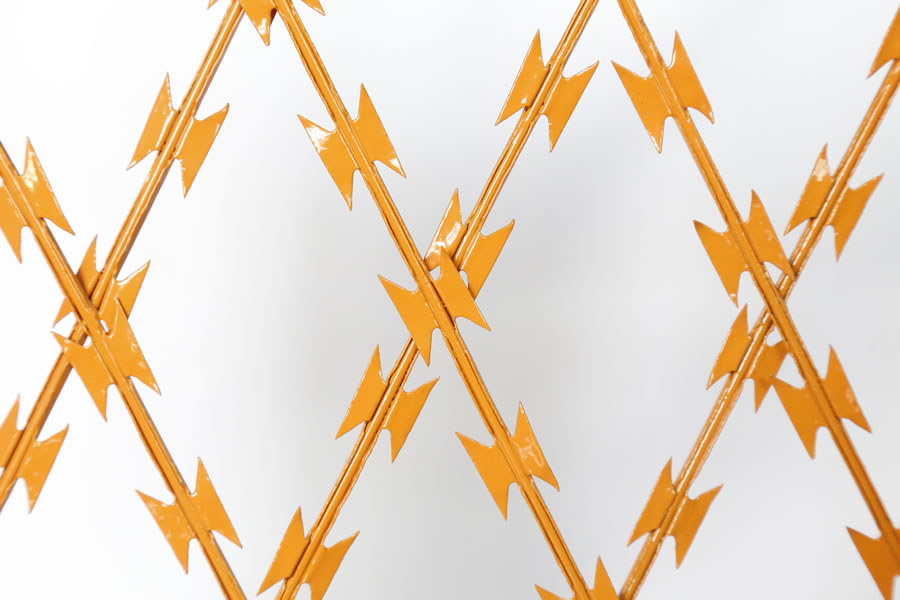

Spiral razor cross-barbed mesh is made of two razors with stainless steel plate and galvanized steel plate in between as a powerful clamp buckle, which takes the shape of cross when spread.

Single-ring razor barbed mesh, available without a clamp, is installated according to its natural form of spreading.

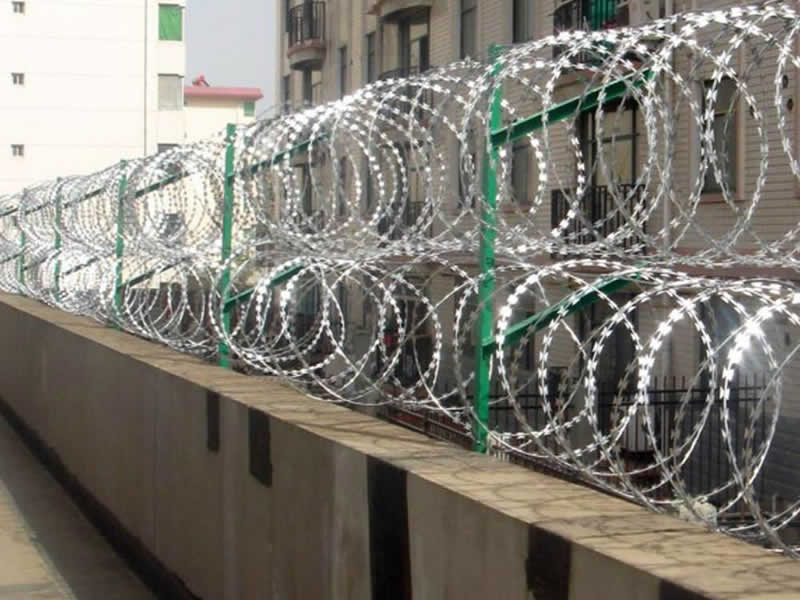

Razor type barbed wire is widely used in high-grade residence district, warehouses, prisons and in military fields and other sites requiring severe fencing and security. Razor wire can be classified into straight type razor wire, concertina coils, crossed type and flat type according to the installation models.

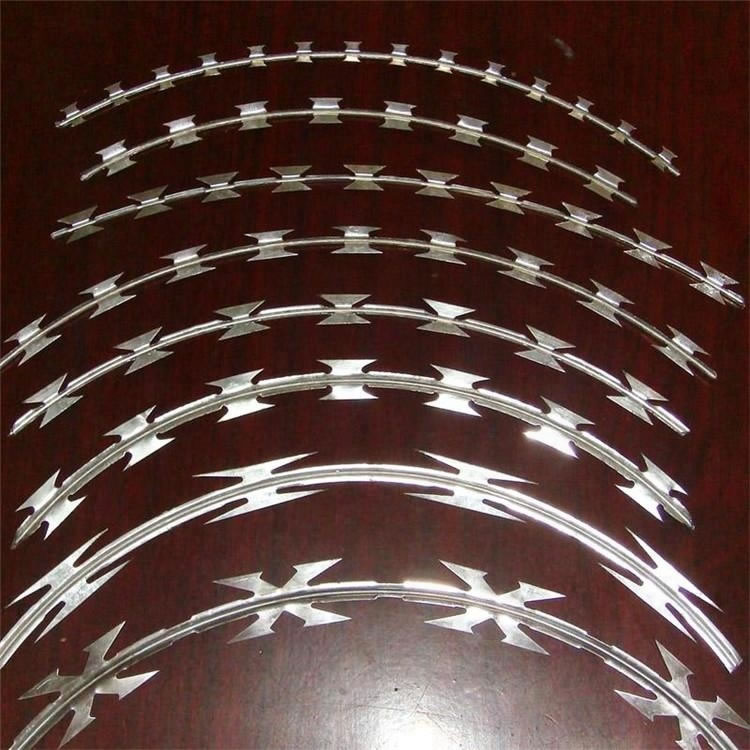

Reference Number	Blade Style	Thickness	Wire Dia	Barb Length	Barb Width	Barb spacing
BTO-10		0.5±0.05	2.5±0.1	10±1	13±1	25±1
BTO-12		0.5±0.05	2.5±0.1	12±1	15±1	25±1
BTO-18		0.5±0.05	2.5±0.1	18±1	15±1	35±1
BTO-22		0.5±0.05	2.5±0.1	22±1	15±1	36±1
BTO-28		0.5±0.05	2.5	28	15	46±1
BTO-30		0.5±0.05	2.5	30	18	46±1
CBT-65		0.6±0.05	2.5±0.1	65±2	21±1	101±2
