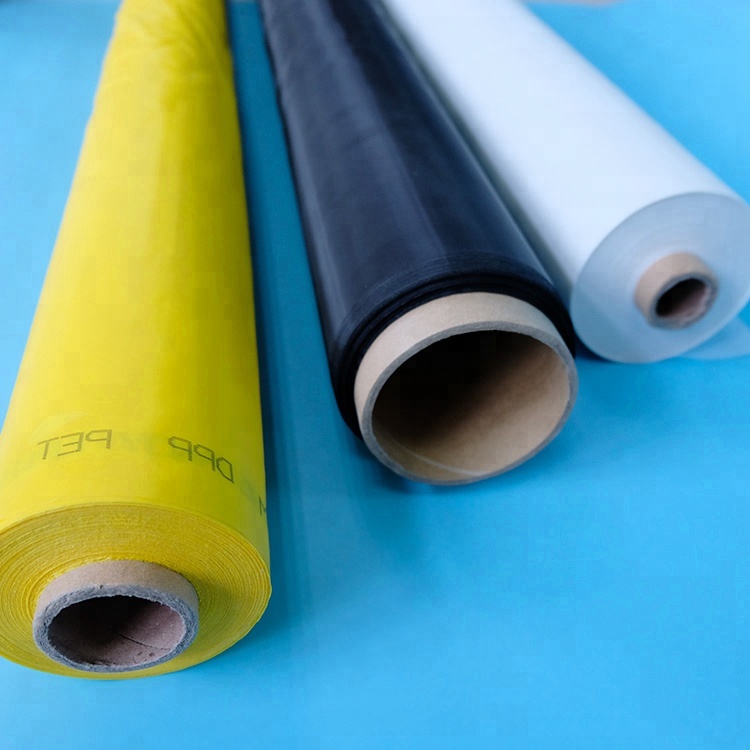

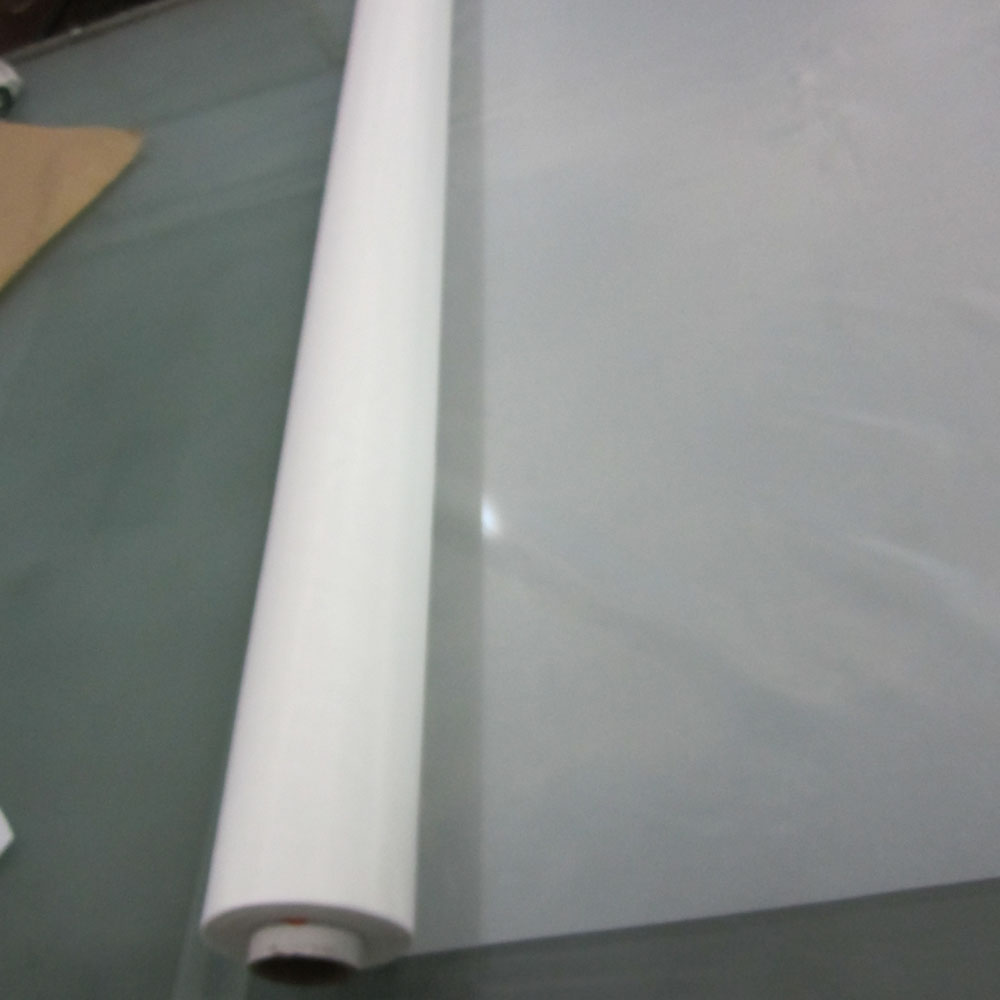

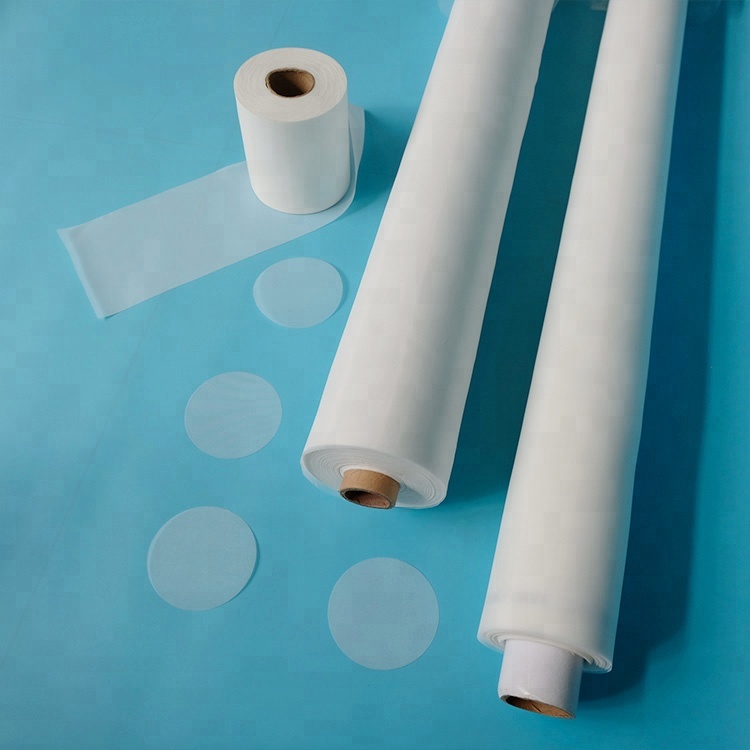

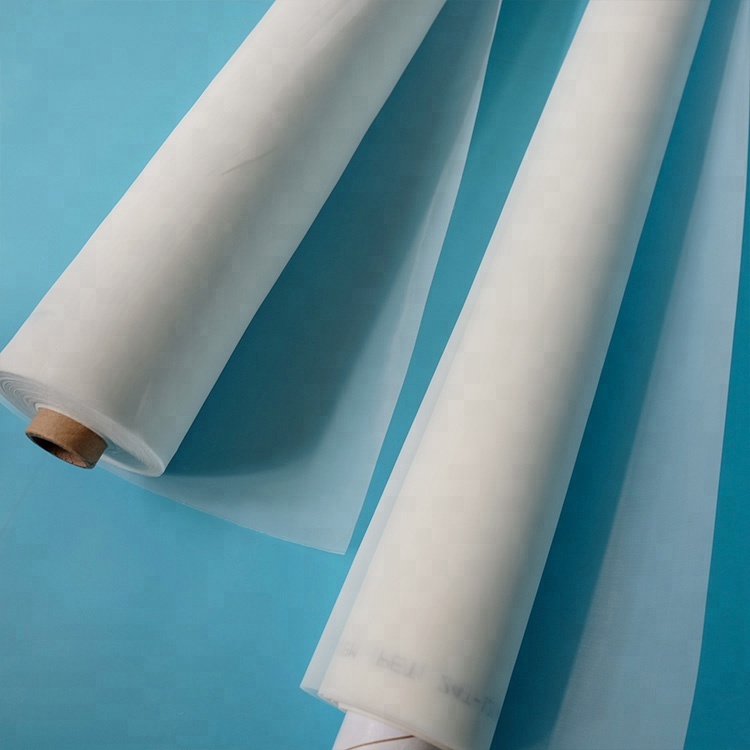

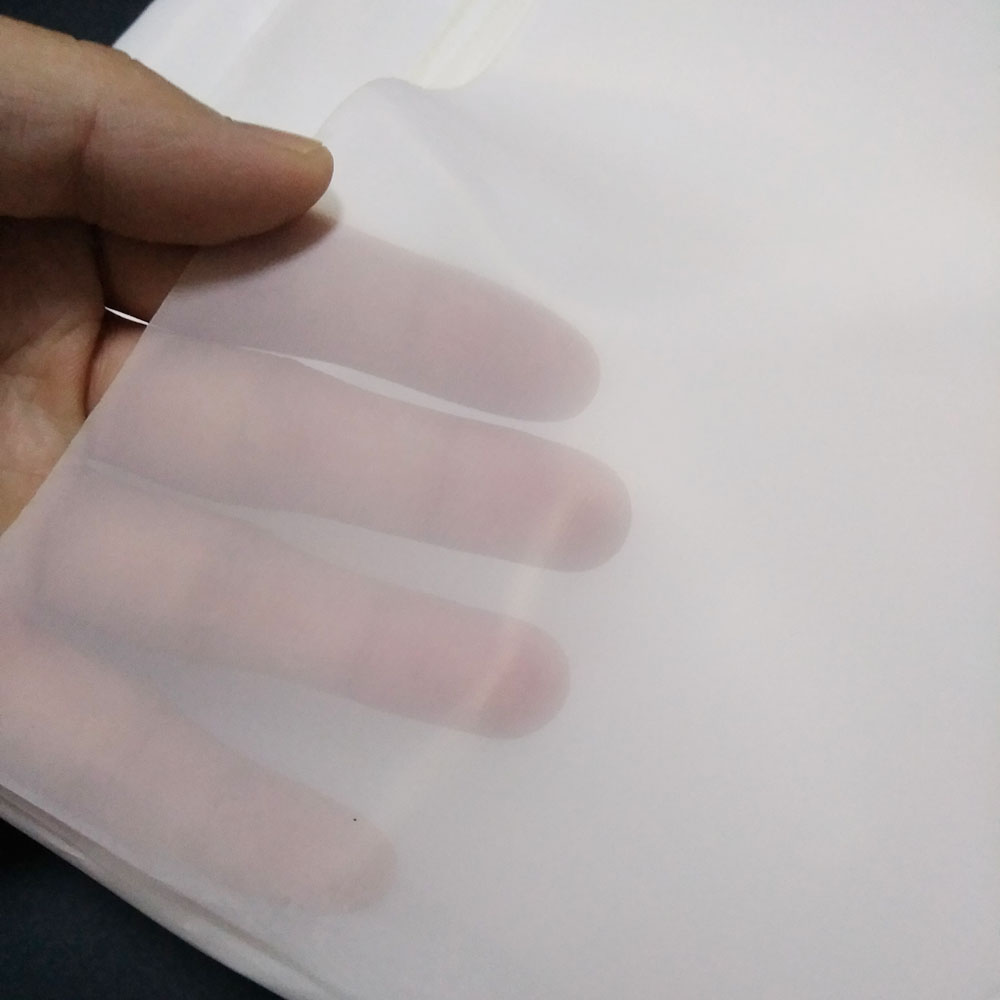

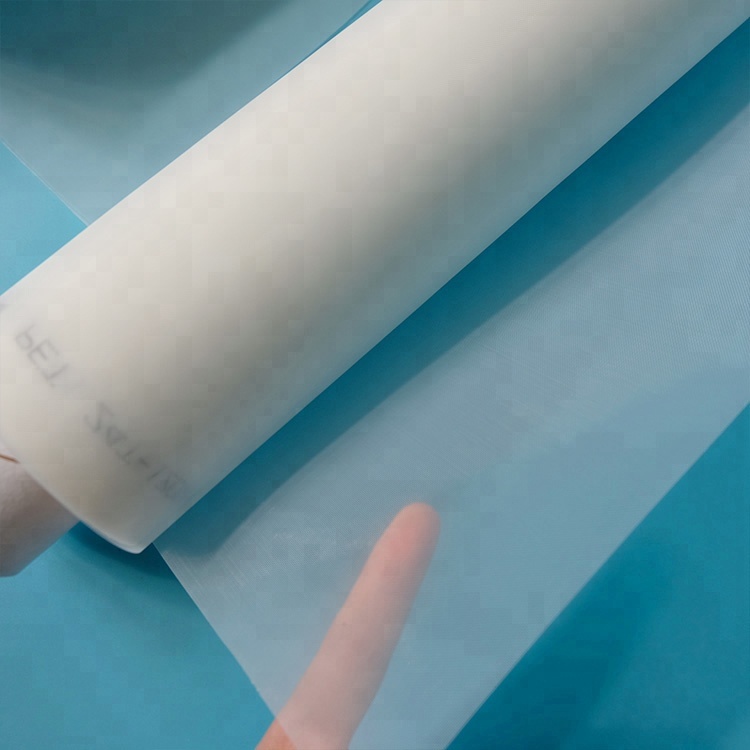

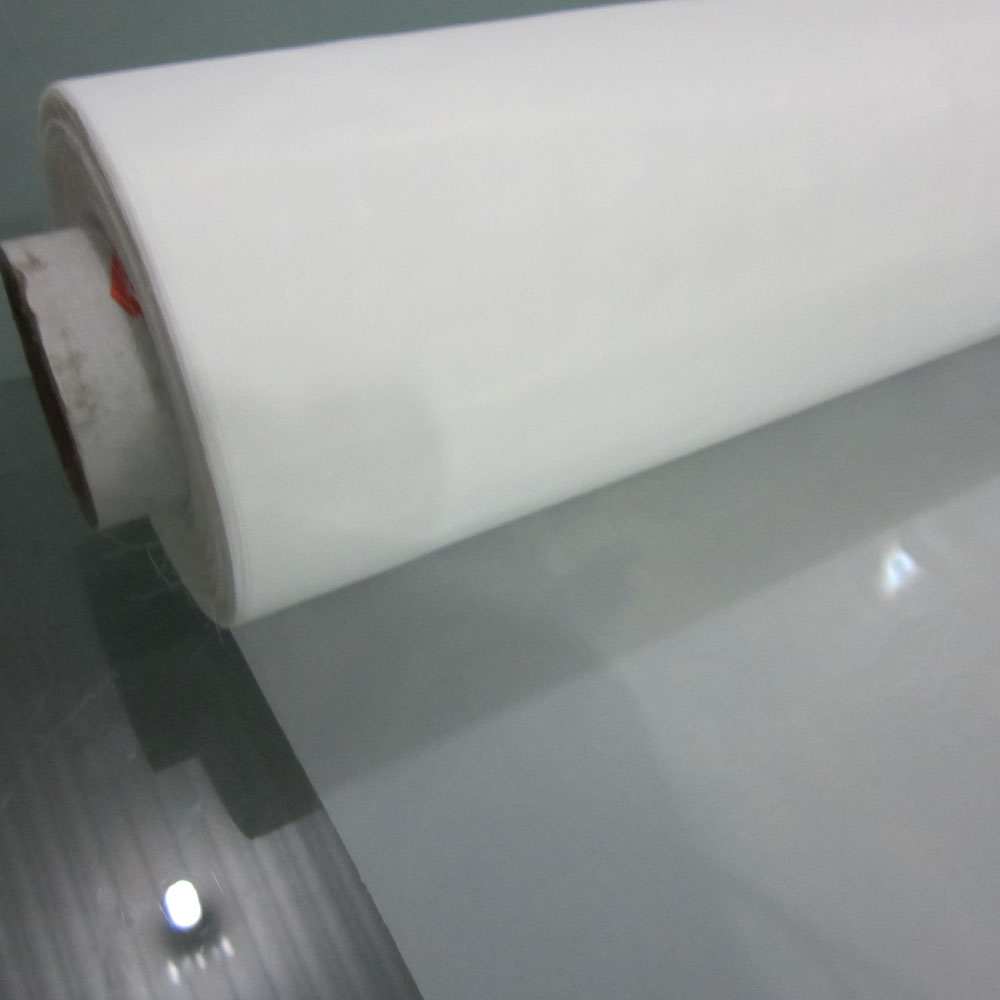

Polyester Mesh

Material:	100% Polyester
Feature:	High quality and precision with
Application:	Screen printing, plate making in electronic

Description
Tag

Polyester Printing Mesh Screen:

Polyester Printing Screen Mesh Fabric is one of the most advanced high-tech mesh fabric products in 1990s for screen printing.

With high quality material, Petter produces superior quality polyester and polyamide bolting cloth for screen printing. We also have the most advanced testing instruments and technicians well trained to guarantee a reliable quality.

Monofilament Polyester Screen Printing Mesh(Low-elongation) Features:

Low-Elongation Monofilament Polyester Screen printing mesh is what we are producing now in a wide range of mesh counts, and our products offer significant advantages over the traditional monofilament polyester:

Faster tensioning without damage to the threads
Improved fabric strength
Faster tension stabilization
Higher tension threshold and breaking point
Less tension loss during the stretching process
Faster turnaround time from the screen room to the pressroom
Improved registration due to stable tension
Faster Print Speeds

Applications:

CD/DVD Printing, Ceramic Decorating, Graphic Screen Printing, Package Printing, Printed Electronics, Printing on Glass, Solar Cell Printing, Textile Printing

Technical Details:

Monofilament polyester mesh screen (low-elongation) is available with a wide range of mesh counts and significant advantages compared with traditional polyester mesh.

Polyester mesh was introduced to the screen printing market over 40 years ago and quickly replaced traditional silk as the fabric of choice among screen printers all over the world. It is a material that is uniquely suitable for screen printing because of its tensile strength, elastic memory and resistance to chemicals, abrasion heat and moisture. Polyester screen is a kind of synthetic fabric constructed similar to silk, yet with better uniformity. Compared to silk, polyester screen cloth offers extreme durability, yet has a lower price.

We mainly offer high quality and high precision polyester and polyamide bolting screen ranging from 60-420 mesh. This product is widely used in printing and plate-making in electronic, textile, ceramics industry, also used for melting filtration in space flight, petroleum chemical and other high-tech fields. This product is the most advanced high-tech products for silk printing in the world in nineties.

Detail Specification of Polyester Screen Mesh
Specification	Mesh Count	Thread Dia.	Aperture	Openning	Thickness	Theoretica Ink Volume	Tensile Strength
T	mesh/inch	micron	micron	%	micron	C㎡/㎡	n/cm
10-250	25	250	740	53	465	246	60
16-200	40	200	435	47	420	189	48
20-140	50	140	340	46	280	129	52
24-100	60	100	316	58	190	109	48
24-120	60	120	300	51	210	105	42
32-100	80	100	200	43	160	69	42
36-100	90	100	178	41	175	72	42
39-55	100	55	201	62	100	62	30
39-80	100	80	172	46	142	65	42
43-80	110	80	150	41	130	55	35
48-70	120	70	135	41	115	46	32
53-55	135	55	134	50	105	53	34
54-64	137	64	115	39	102	40	30
59-55	150	55	100	40	93	39	32
64-55	160	55	101	42	105	44	30
64-64	160	64	90	32	106	34	35
72-48	180	48	94	46	80	37	32
72-55	180	55	75	29	92	27	32
77-55	195	55	70	25	88	24	29
80-48	200	48	78	30	84	24	29
80-55	200	55	70	25	88	24	29
90-48	230	48	55	25	78	20	33
100-40	250	40	58	32	65	21	29
110-40	280	40	48	27	65	17	30
120-34	300	34	45	30	55	16	30
120-40	300	40	40	20	55	16	29
140-31	350	31	35	26	48	13	27
140-34	350	34	30	20	55	10	30
150-31	380	31	32	23	47	10	28
150-34	380	34	30	20	69	10	30
165-31	420	31	25	17	49	8	28
